The Precision of Steel Tube Expansion: A Key Industrial Process

Steel Tube Expansion: A Detailed Look at the Process

Steel tube expansion is a critical process in various industries, particularly in manufacturing and construction. This method is used to enlarge the diameter of steel tubes without compromising their structural integrity. Understanding the nuances of this process is essential for ensuring the reliability and quality of the final product.

Why This Matters

The ability to expand steel tubes without breaking is crucial for several reasons. First, it allows for the creation of customized components that fit specific dimensions and requirements. Second, it ensures that the expanded tubes maintain their strength and durability, which is vital for applications in pipelines, machinery, and other industrial equipment. Additionally, the process must be precise to avoid defects that could lead to failures in the field.

Main Discussion

The Basics of Steel Tube Expansion

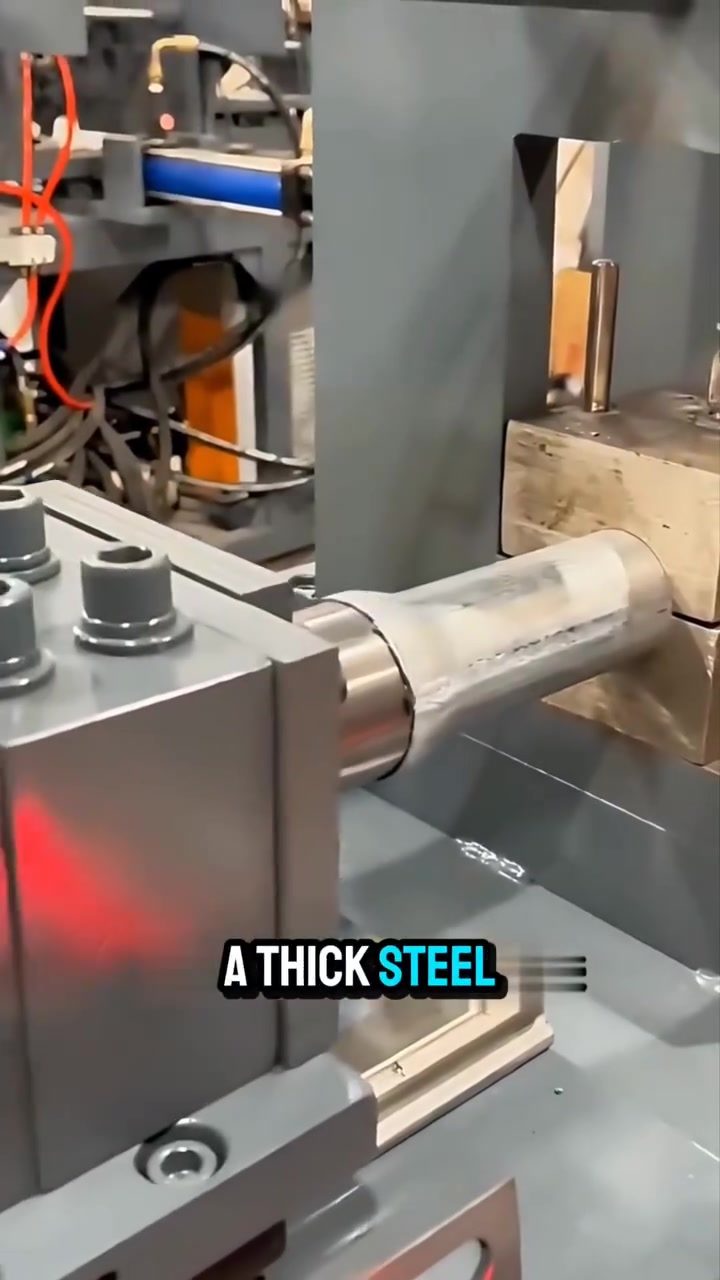

The process of expanding steel tubes involves forcing a thick steel rod into a narrow metal tube. This gradual stretching from the inside is known as tube expansion. The success of this process relies on the metal's ability to deform without breaking. However, applying more force is not always the best approach. Uneven pressure or rapid expansion can cause the tube to warp or crack.

Controlling the Expansion

To mitigate these risks, several strategies are employed:

1. Lubrication: Workers coat the expanding rod with lubricant to reduce friction. This ensures a smoother and more controlled expansion process.

2. Molding: For thin or delicate tubes, the pipe is locked inside a mold. This step ensures that the tube expands evenly and retains its shape.

3. Staged Expansion: When a larger diameter is needed, the tube is expanded in stages using rods of increasing sizes. This gradual approach helps maintain the tube's structural integrity.

Special Considerations

Heating the Tube

Before expansion, the tube is often heated to improve its ductility and prevent cracking. This step is particularly important for thicker or harder-to-expand materials.

Expanding Curved Tubes

Curved tubes present an additional challenge. Instead of using rods, steel balls are pushed through the pipe. This method expands the tube from the inside while preserving its complex shape. This technique is crucial for creating perfectly expanded tubes with remarkable precision.

Visualizing the Process

The expansion process can be visualized through various steps. Initially, a thick steel rod is fed into the tube, gradually stretching it from the inside. The process requires precise control of the diameter to ensure uniformity. The final result is a perfectly expanded tube that meets the required specifications.

The Role of Machinery

Specialized machinery, such as steel expanding machines, plays a pivotal role in this process. These machines use hydraulic pressure to expand the steel tubes, ensuring that the expansion is controlled and uniform. The machines are designed to handle various tube sizes and shapes, making them versatile tools in industrial settings.

Practical Tips

Ensuring Precision

1. Use High-Quality Lubricants: Selecting the right lubricant can significantly reduce friction and ensure a smoother expansion process.

2. Monitor Temperature: Heating the tube before expansion can enhance its ductility, making it easier to expand without cracking. Monitor the temperature carefully to avoid overheating, which can weaken the material.

3. Increase in Stages: For larger expansions, gradually increase the size of the rods. This staged approach helps maintain the tube's integrity and prevents warping.

4. Utilize Molds: For delicate or thin tubes, use molds to ensure even expansion and maintain the tube's shape.

Handling Curved Tubes

1. Use Steel Balls: Instead of rods, push steel balls through the pipe to expand curved tubes. This method preserves the tube's complex shape and ensures even expansion.

2. Maintain Control: Use specialized machinery designed to handle curved tubes. These machines provide the necessary control and precision for a successful expansion.

Important Takeaways

1. Precision is Key: The success of steel tube expansion relies on precise control of the expansion process. Uneven pressure or rapid expansion can lead to defects.

2. Lubrication and Heating: Using lubricants and heating the tube before expansion can significantly improve the process, making it smoother and more controlled.

3. Specialized Machinery: Investing in high-quality, specialized machinery ensures that the expansion process is precise and uniform, resulting in high-quality, reliable tubes.

4. Staged Expansion: For larger expansions, a staged approach using rods of increasing sizes helps maintain the tube's structural integrity.

Conclusion

Steel tube expansion is a crucial process in industrial applications, offering a way to create customized components with precise dimensions. Understanding the intricacies of this process, from lubrication and heating to the use of specialized machinery, is essential for achieving high-quality, reliable results. By following practical tips and utilizing the right techniques, manufacturers can ensure that their expanded tubes meet the required specifications and maintain their structural integrity.
