Acoustic Mirrors: Early Aircraft Detection Before Radar

Early Aircraft Detection: The Role of Acoustic Location Devices

Before the advent of radar, military forces relied heavily on acoustic location devices to detect incoming aircraft. These devices, often referred to as "acoustic mirrors" or sound locators, played a crucial role in early aircraft detection, particularly during World War I and the interwar period. Understanding these primitive methods provides insight into the evolution of surveillance technology and the challenges faced by military forces in detecting aircraft.

Context: Why This Matters

Before radar technology became prevalent, military forces needed effective ways to detect and track approaching aircraft. Acoustic location devices, though rudimentary, were essential tools in this endeavor. Their use highlights the innovative spirit of the time and the meticulous efforts to enhance surveillance capabilities despite technological limitations. The development of radar later rendered these devices obsolete, but their historical significance remains notable.

The Evolution of Acoustic Detection Technology

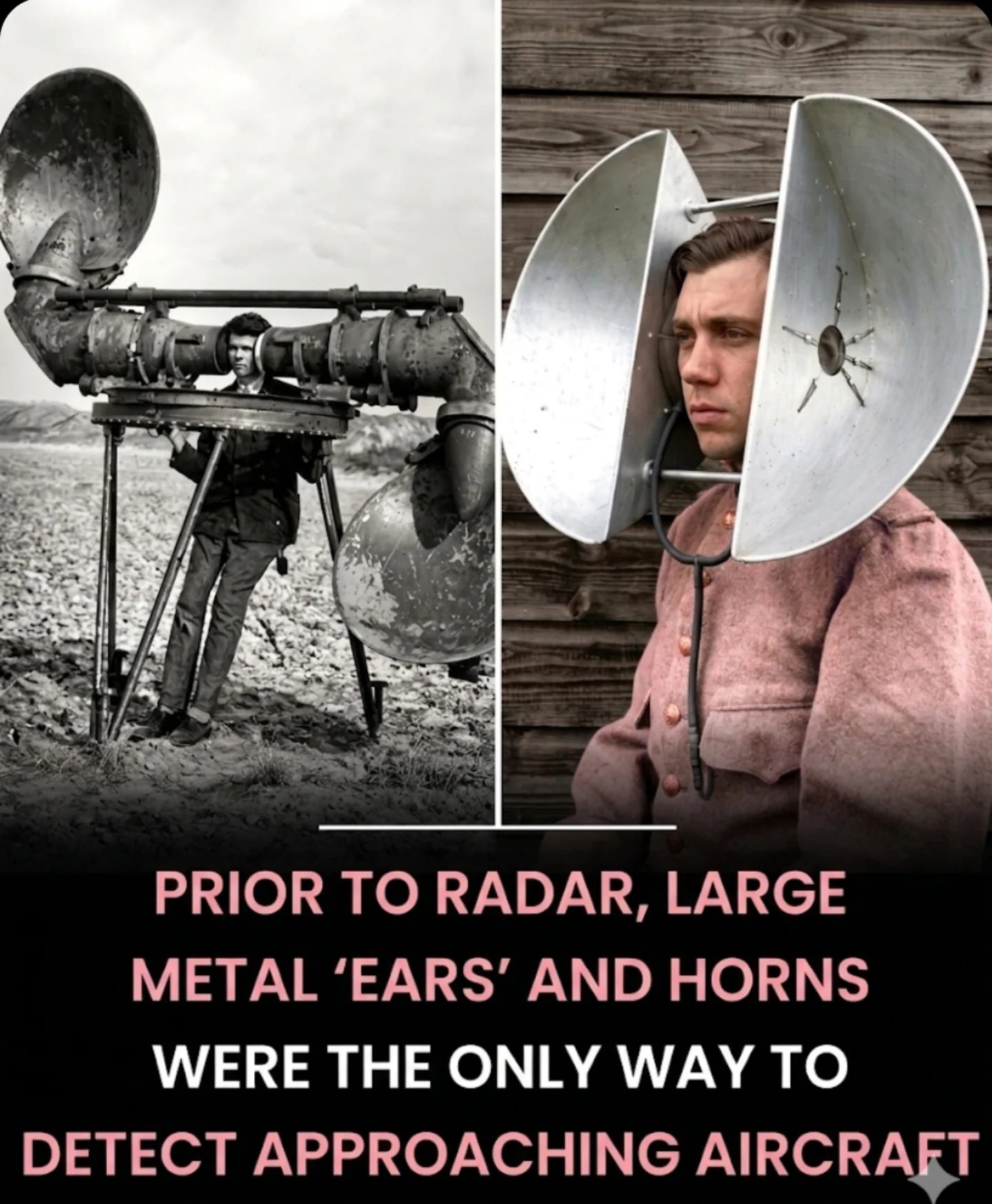

Acoustic location devices were the primary means of detecting aircraft before radar was invented. These devices came in various forms, each designed to amplify and locate distant sounds. The two main types highlighted here are the large, rotatable horn system and the wearable parabolic metal reflectors.

Large, Rotatable Horn Systems

The first type of acoustic detection device featured a large, rotatable horn system. This system was designed to amplify distant sounds and funnel them directly to an operator's headphones. Operators could then determine the direction and elevation of an approaching aircraft based on the sound waves. This method was particularly useful for detecting aircraft at lower altitudes, where the sound of their engines was more pronounced. However, it required significant infrastructure and was less portable, limiting its use to fixed locations.

Wearable Parabolic Metal Reflectors

The second type of acoustic detection device was more portable and personal. These devices consisted of wearable parabolic metal reflectors that concentrated sound waves directly into the wearer's ears via stethoscope-style tubes. This design allowed for greater mobility and flexibility, as operators could move around and still detect aircraft. The portable nature of these devices made them ideal for use in various environments, including mobile units and field operations. Despite their advantages, both types of devices were highly dependent on favorable weather conditions, which often limited their effectiveness.

Practical Tips for Understanding Acoustic Detection

For those interested in understanding and possibly reconstructing these early detection methods, several practical tips can be helpful:

• Material Selection: Acoustic detection devices were typically made from metal, which provided durability and effectiveness in amplifying and concentrating sound waves. Choose materials that can withstand outdoor conditions and effectively reflect sound.
• Design Considerations: The design of the devices, whether large and fixed or small and portable, affected their usability. Large, rotatable horn systems required fixed locations and infrastructure, while wearable reflectors offered more flexibility.
• Operational Conditions: Both types of devices were highly dependent on favorable weather conditions. Clear, calm weather was essential for effective sound detection. Understanding the limitations of these devices can help in appreciating the advancements made with radar technology.

Important Takeaways

Acoustic location devices were a revolutionary development for their time, marking a significant step in aviation surveillance. Their ability to detect incoming aircraft using sound waves showcased the ingenuity of early engineers. However, their reliance on weather conditions and the eventual development of radar technology rendered them obsolete. Despite this, their historical significance remains, offering valuable insights into the evolution of surveillance methods and the challenges military forces faced in early aircraft detection.

Conclusion

Acoustic location devices played a pivotal role in detecting incoming aircraft before the invention of radar. These devices, ranging from large, fixed horn systems to portable, wearable reflectors, showcased the creativity and innovation of early military engineers. While radar technology has since superseded these methods, understanding their historical significance and the challenges they faced provides a deeper appreciation for the advancements in surveillance technology. The transition from acoustic detection to radar highlights the continuous evolution of military surveillance and the relentless pursuit of more effective and reliable detection methods.
